Current video

This view lets you record a new video or view a video that has already been recorded.

It also allows to :

Ribbon commands:

•Video :

oEdit : Open the current test parameters dialog box.

oAdd a file : Add a new video to the list from a file on the computer.

oAdd record : Record a video with a webcam and add it to the list.

▪Navigation :

oPrevious video : select the previous video ( according to the order of creation of the videos ) as the current video.

oNext video : select the next video ( according to the order of creation of the videos ) as the current video.

▪Workspace :

oShow : Show or hide the workspace .

o : Allows you to display or hide the tests in the workspace according to their status (Pending, saved, analyzed, excluded).

oExpand all : fully expand the tree structure of the "Animals / Tests" node of the workspace.

oCollapse all : collapse the tree structure of the "Animals / Tests" node of the workspace.

oCollapse Tests : Collapse the workspace tree to the parent nodes of the tests.

oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals" or "Tests" node of the workspace.

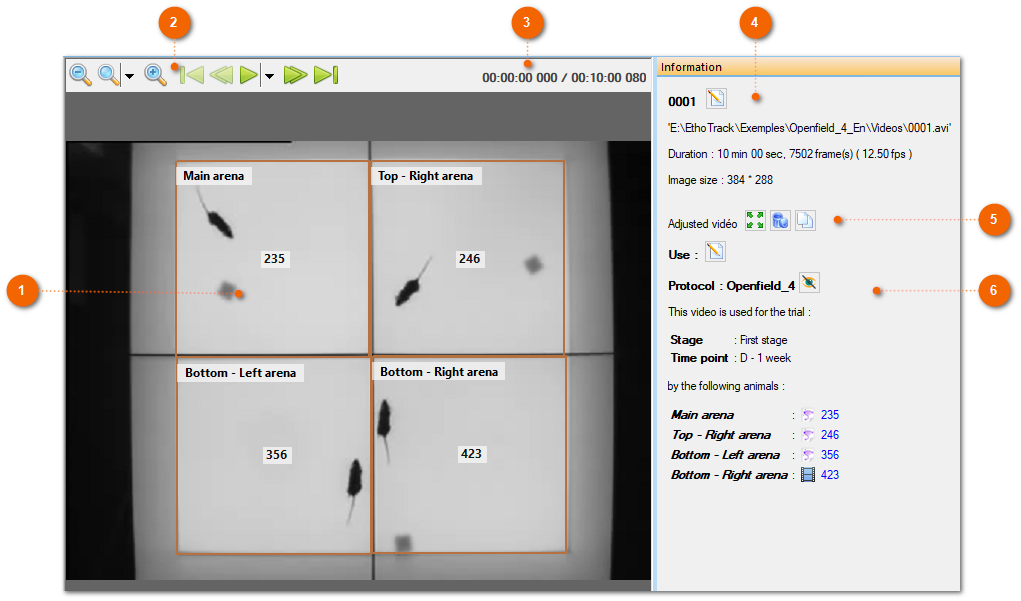

Main part:

	Video :
	The central part displays either the recorded video, or the webcam image if the video has not yet been recorded.

Command bar :

Video zoom and playback control buttons

	Current image information :
	Some information about the image being played.

	Information
	This area displays information about the current video

Adjustment

This area indicates whether the video is adjusted or not and allows you to control the adjustment of the video position.

•click to delete the video position adjustment ( Warning : adjustment is removed for all protocols ).

Use :

The list of tests that use the current video.

•click to show or hide the arenas of the indicated protocol on the video.

•click on the test or animal name to open the corresponding test in the "Current test" view.
