This view presents all the information relating to a test.
Ribbon commands:
.png)
•Current test :
oEdit : Open the current test parameters dialog box.
oAdjust Arena : Open the arena adjustment side panel.
oDetection settings : Open the side panel for modifying detection parameters.
oSelect in the list : Select a video from the video list.
oOpen a file : Select a file on the computer and add it to the video list.
oRecord according to the protocol : Start recording the video according to the parameters (start and duration) defined in the protocol.
oRecord Now : Start video recording immediately regardless of protocol start and end conditions (recording will not stop automatically).
▪Video / Tracking :
oShow : Show or hide the video.
oZoom : Modification of the zoom factor of the video display.
oConfigure display : Open the display configuration dialog to select what to display.
oSave as bitmap : Save the current frame of video and animal tracking to an image file.
oSave a video : Save part of the video and tracking information (track, animal position, etc.) to a video file.
▪Curves :
oShow : Show or hide tracking curves (speed, presence in zones, etc.)
oSave as bitmap: Save tracking curves to an image file.
▪Panels :
oInformation : Show or hide the "Information" side panel.
oCurves : Show or hide the "Curves" panel.
oConfigure display : Open the display configuration dialog to select what to display.
oSave as bitmap : save the curves as an image file.
oDisplay : Show or hide the "Display" side panel allowing you to select the elements to display.
•Workspace :
oShow : Show or hide the workspace .
o.png) : Allows you to display or hide the tests in the workspace according to their status (Pending, saved, analyzed, excluded).
oExpand all : fully expand the tree structure of the "Animals / Tests" node of the workspace.
oCollapse all : collapse the tree structure of the "Animals / Tests" node of the workspace.
oCollapse Tests : Collapse the workspace tree to the parent nodes of the tests.
oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals" or "Tests" node of the workspace.

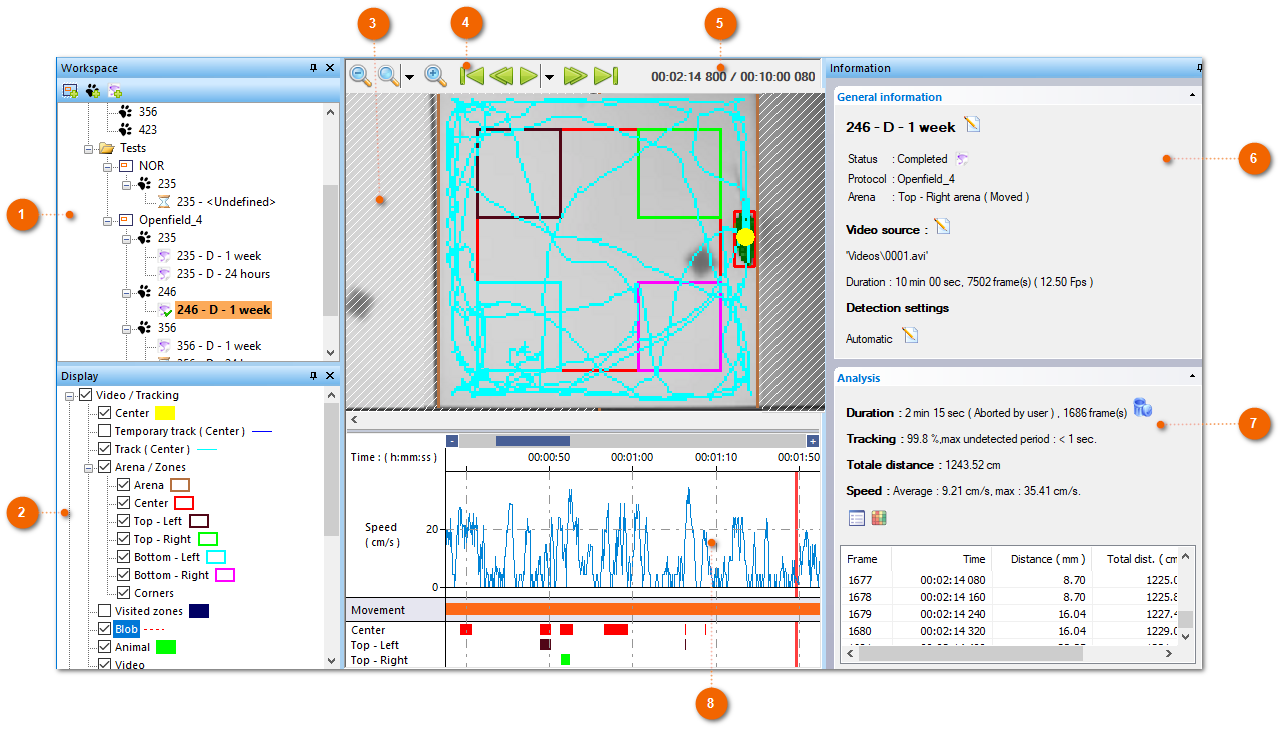

Main part :
.png)
|
.png)
|
Workspace :
|
|
The workspace displays in tree form all the elements of the experiment (protocol, animals, tests, etc.).
|
|
.png)
|
Display :
|
|
"Display" panel that allows you to select the elements to display. For more information, see the " Current test - Display " page.
|
|
.png)
|
Video :
|
|
The central part displays either the recorded video, or the webcam image if the video has not yet been recorded.
|
|
.png)
|
Video control bar :
|
|
Video zoom and playback control buttons
.png)
|
|
.png)
|
Current image information :
|
|
Some information about the image being played.
|
|
.png)
|
Information : General information :
|
|
This area displays the main information on the current test and allows you to quickly perform important actions related to the test. For more information, see the " Running test - Information / General " page.
|
|
.png)
|
Information : Analysis :
|
|
This area displays information about the analysis as well as the list of analysis points. For more information, see the " Test - Analysis " page.
|
|
.png)
|
Curves :
|
|
This zone presents in graphic form some results of the analysis (depending on the options of the "Display" panel) :
The velocity curve after filtering.
The speed curve on the raw data.
The periods when the animal is moving or stationary.
The periods during which the animal is inside the different zones.
The periods during which the animal was not detected.
Period of behaviors.
|
|
