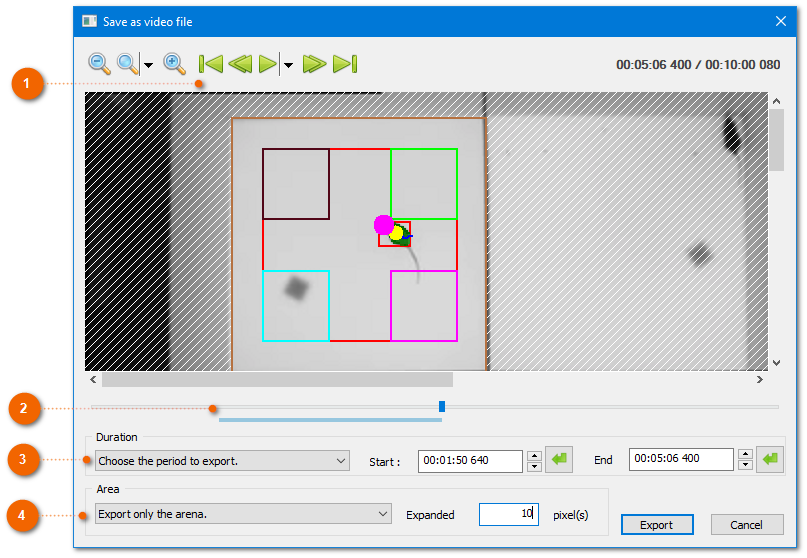

This dialog box allows you to create a video file with the outline of the zones and the tracking information (track, position of the animal, etc.).
.png)
|
.png)
|
Command bar :
|
|
Video zoom and playback control buttons.
|
|
.png)
|
Cursor :
|
|
Slider to quickly reach a video playback position.
|
|
.png)
|
Duration to export :
|
|
The export period can be set in several ways:
By choosing a pre-defined period from the list.
By manually adjusting the start and end using the buttons.png)
Using the current playing position of the video as the start or end of the period thanks to the buttons .png) .
|
|
.png)
|
Area to export :
|
|
The export surface can be defined in several ways:
All recorded area.
The surface of the arena (possibly extended by a few pixels).
The surface visible on the screen (possibly extended by a few pixels). Use the zoom functions to adjust the visible area on the screen.
The selected area. Use the mouse to define the area to export directly on the video frame.
|
Choice of elements to include in the video:
The elements (tracks, temporary tracks, zones, animal positions, etc.) included in the video are those visible in the main view of the current test. You can select the elements or modify the display characteristics (color or line width) using the " Display " side panel of the current test view.
To open this dialog box:
Use the "Save as video file" context menu of the current test view.
Click on the .png) command ribbon button of the "Current test" tab.
|
