Reports

This view displays the result of the reports in the form of a table and/or a graph:

Ribbon commands:

•Protocol : Protocol selection.

oEdit : Modification of the selected protocol.

▪Report : Report selection

oAdd : Creation of a new report.

oEdit : Modification of the selected report.

oCopy : Creation of a new report from the selected report.

oDelete : deletion of the selected report.

•Filter: Filter selection

oAdd : Creation of a new filter.

oEdit : Modification of the selected filter.

oCopy : Creation of a new filter from the selected filter.

oDelete : deletion of the selected filter.

•Spreadsheet :

oShow : Show or hide the table view of the report.

oExport : Export the report to a Microsoft© Excel document or a text file with separator ( CSV ).

oExpand all : fully expand the tree structure of the "Animals / Tests" node of the table.

oCollapse all : collapse the tree structure of the "Animals / Tests" node of the table.

oCollapse Tests : Collapse the table tree to the levels of the parent nodes of the tests.

oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals / Tests" node of the report.

•Chart :

oShow : Show or hide the graphical view of the report.

oSave as bitmap : Save the graphical view of the report to an image file.

o: Selection of the type of graphic representation (curve of points, histogram, or stacked histogram).

•Favorite reports :

oSelect : Select and generate a report from the list of favorite reports.

oAdd : Create a new favorite report from the current configuration (report, filter, display, ...). Or modify an existing favorite report with the current configuration.

oDelete : Delete a favorite report.

•Workspace :

oShow : Show or hide the workspace .

o : Allows you to display or hide the tests in the workspace according to their status (Pending, saved, analyzed, excluded).

oExpand all : fully expand the tree structure of the "Animals / Tests" node of the workspace.

oCollapse all : collapse the tree structure of the "Animals / Tests" node of the workspace.

oCollapse Tests : Collapse the workspace tree to the parent nodes of the tests.

oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals" or "Tests" node of the workspace.

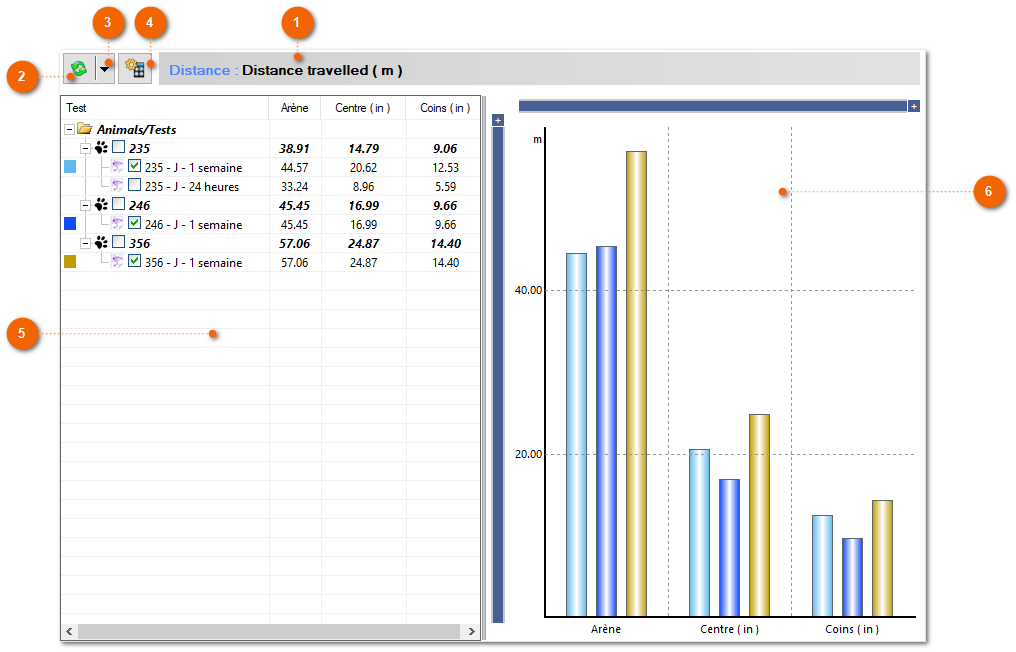

Main part:

The central part displays the result of the reports in the form of a table and/or a graph:

	Title :
	General report information: Name, Report type, Unit.

	'Refresh' button :
	Button to refresh the report. Only tests that have been added, modified or analyzed are recalculated.

Choosing the Automatic Report Refresh Option :

Click the arrow to open a menu to choose whether the report should be refreshed automatically each time a report parameter is changed or not.

When this option is selected, the report is automatically updated each time it is necessary (modification of a parameter of the report, modification of the analysis of a test, etc.). Otherwise, the report must be refreshed by clicking on the button .

	'Recalculate' button :
	Button to recalculate the whole report. All tests are recalculated.

	Spreadsheet :
	The report results in tabular form.

	Chart :
	Report results ( only the checked items ) as a graph (lines, bars, or stacked bars)
