When the video source defined in the protocol is a webcam, the “Current video” view allows you to record a new video.
In this mode, the operator can start recording and view the webcam image in real time. He can interrupt the recording at any time if he wishes. At the end of the recording, he can replay the video before deciding whether or not to keep the recording.
Ribbon commands:
.png)
•Video :
oEdit : Open the current test parameters dialog box.
oAdd a file : Add a new video to the list from a file on the computer.
oAdd record : Record a video with a webcam and add it to the list.
oRecord according to protocol : Start recording a video according to the protocol (the beginning and the end of the recording will be in accordance with the parameters of the "Source" tab ).
oRecord now : Start recording a video immediately without taking into account the start and end conditions of the protocol (the recording will not stop automatically).
•Navigation :
oPrevious video : Select the previous video ( according to order in which the video were cerated ) as the current video.
oNext video : Select the next video ( according to order in which the video were cerated ) as the current video.
▪Workspace :
oShow : Show or hide the workspace .
o.png) : Allows you to display or hide the tests in the workspace according to their status (Pending, saved, analyzed, excluded).
oExpand all : fully expand the tree structure of the "Animals / Tests" node of the workspace.
oCollapse all : collapse the tree structure of the "Animals / Tests" node of the workspace.
oCollapse Tests : Collapse the workspace tree to the parent nodes of the tests.
oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals / Tests" node of the workspace.

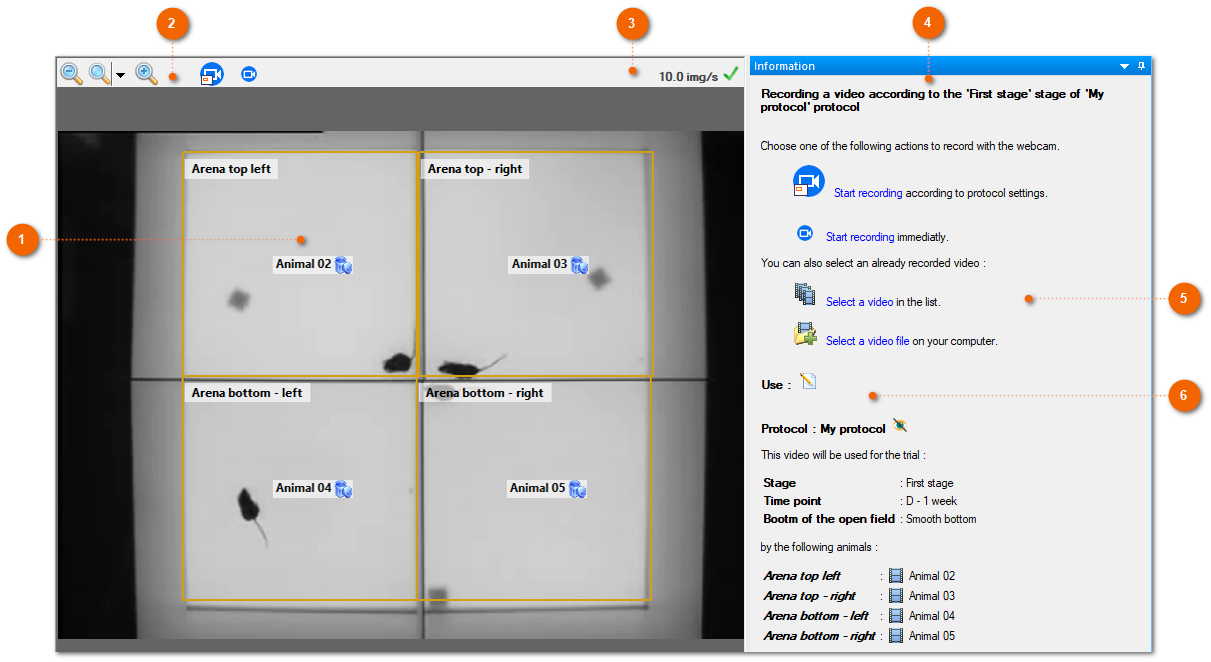

Main part:
.png)
|
.png)
|
Video :
|
|
The central part displays the image of the camera.
Superimposed, the arenas as well as the animals present in the video in their respective arenas can be displayed. (click on .png) to show or hide this information).
|
|
.png)
|
Command bar :
|
|
Video zoom and record control buttons :
.png) : Record a video according to the protocol (the beginning and the end of the recording will be in accordance with the parameters of the "Source" tab of the protocol).
.png) : Start recording a video immediately without taking into account the start and end conditions of the protocol (the recording will not stop automatically).
|
|
.png)
|
Frame rate :
|
|
Actual camera frame rate.
|
|
.png)
|
Information :
|
|
This protocol and the stage.
|
|
.png)
|
Actions :
|
|
: Record a video according to the protocol (the beginning and the end of the recording will be in accordance with the parameters of the "Source" tab of the protocol).
: Start recording a video immediately without taking into account the start and end conditions of the protocol (the recording will not stop automatically).
|
|
.png)
|
Use :
|
|
The list of tests linked to this video.
Click the button .png) to edit this list.
|
|
