This view displays and manages the list of animals used in the experiment.
Ribbon commands :
.png)
•Animal:
oAdd : Add an animal.
oImport animals : Import multiples animals from a file
oMultiple animals : Add multiple animals using the Animal Creation Wizard.
oEdit : Modify the selected animal.
oDelete : Delete the selected animal.
•List of animals :
oExpand all : fully expand the tree structure of the "Animals" node of the list.
oCollapse all : collapse the tree structure of the "Animals" node of the list.
oCollapse Videos : Collapse the workspace tree to the parent nodes of the animals.
oGroup / Sort : open the dialog box for configuring the tree structure of the animal list.
oColumns : Modify table columns.
oExport : Export the list in a Microsoft© Excel or text file with separator ( CSV ).
▪User fields :
oNew : Add an animal type user field.
oManage : Opens the dialog for managing user fields .
•Workspace :
oShow : Show or hide the workspace .
o.png) : Allows you to display or hide the tests in the workspace according to their status (Pending, saved, analyzed, excluded).
oExpand all : fully expand the tree structure of the "Animals / Tests" node of the workspace.
oCollapse all : collapse the tree structure of the "Animals / Tests" node of the workspace.
oCollapse Tests : Collapse the workspace tree to the parent nodes of the tests.
oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals" or "Tests" node of the workspace.
Main part:

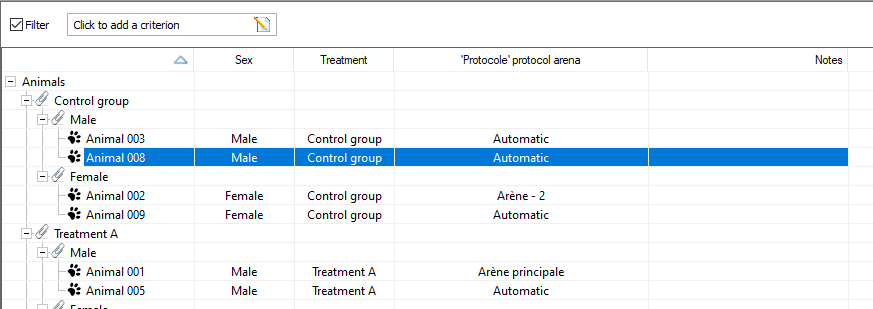

The central part displays the list of animals and information about each animal.
.png)
Choozing and organizing colums :

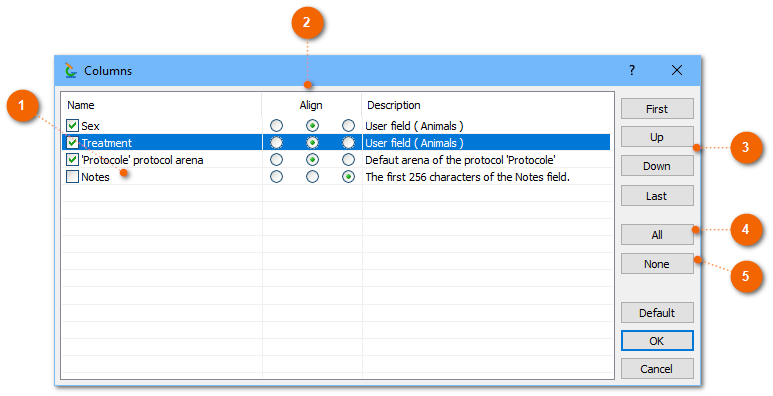

You can customize the table by choosing which columns to display and the order in which these columns are displayed. To do this, click the button .png) of the command ribbon or use the "Column" context menu to open the dialog box :
.png)
|
.png)
|
List of columns
|
|
The list of columns that can be displayed in the table. Check the box to display a column.
|
|
.png)
|
Align
|
|
Text alignment in the column : right, left or center alignment.
|
|
.png)
|
Position of columns
|
|
Buttons to change the position of the selected column. You can also change the position of a column by simply "drag and drop". To do this: click on the corresponding line, then while holding down the mouse button, move the line. Finally, release the mouse button when you have reached the new desired position.
|
|
.png)
|
All
|
|
Show all columns.
|
|
.png)
|
None
|
|
Hide all columns.
|
You can also change the position of a column by simply "drag and drop". To do this: click on the column header, then while holding down the mouse button, move the header. Finally, release the mouse button when you have reached the new desired position.
Sorting data :
You can sort the data in the table in ascending or descending order of a column. To do this, simply click on the column header. The sorting and sort order in indicated by an arrow: .png)
Organizing the animal tree :
To organize the display of animals it is possible to define grouping levels, such as the userfields. To do this, click the button .png) on the command ribbon or use the "Group / Sort" context menu to open the "Group / Sort Animals" dialog box.
Selecting animals to display :
You can create a filter to select the animals to display in the list, for example only animals of the control group. To do this, click on "Click to add a criterion" in the area at the top of the table, then select a criterion and configure the criterion settings (the settings area depends on the selected criterion).
.png)
You can add a maximum of 3 filter criteria. Only animals that meet all the criteria are displayed.
You can temporarily disable a filter criterion by unchecking the corresponding checkbox .png) . You can also temporarily disable all criteria by unchecking the "Filter" box .png) .
Contextual menu :
Click on the header of the table with the right button of the mouse to bring up the contextual menu allowing you to manage the user fields.
Right-click an animal to bring up the context menu to manage animals.
Changing an animal's parameters :
To change an animal's settings, you can open the "Animal" dialog box , either :
by selecting the animal in the list, then clicking on the "Edit" button on the command ribbon.
by double clicking on the animal.
by selecting the "Edit" command from the popup menu.
.png) If you want to delete an animal that has already performed one or more tests, you must first delete all tests performed by this animal.
|
