Each report can be linked to one or more zones of interest.
A zone of interest can be:
the whole arena.
inside a zone defined in the protocol.
outside a zone defined in the protocol.
.png)
|
.png)
|

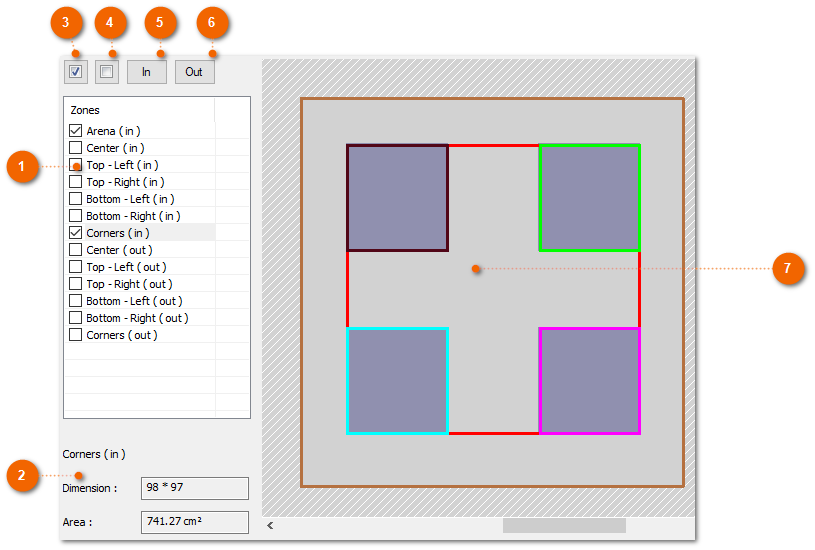

Selection of zones of interest
|
|
Click the checkboxes to select or deselect the report's zones of interest (inside or or outside).
|
|
.png)
|
Information
|
|
Some information about the highlighted area in the list (name, dimension, area).
|
|
.png)
|
Select all
|
|
Click to select all zones.
|
|
.png)
|
Deselect all
|
|
Click to deselect all zones
|
|
.png)
|
Select inside zones
|
|
Click to select only the inside of the zones.
|
|
.png)
|
Select outside zones
|
|
Click to select only the outside zones.
|
|
.png)
|
Display
|
|
Representation of the arena and the zones defined in the protocol.
the area highlighted in the list also appears highlighted in the display part.
|
.png) You must select at least one zone.
|
