This dialog box allows you to make the link between a video and one or more tests. When the protocol includes secondary arenas it also makes it possible to indicate for each test the arena in which the animal was placed during recording.

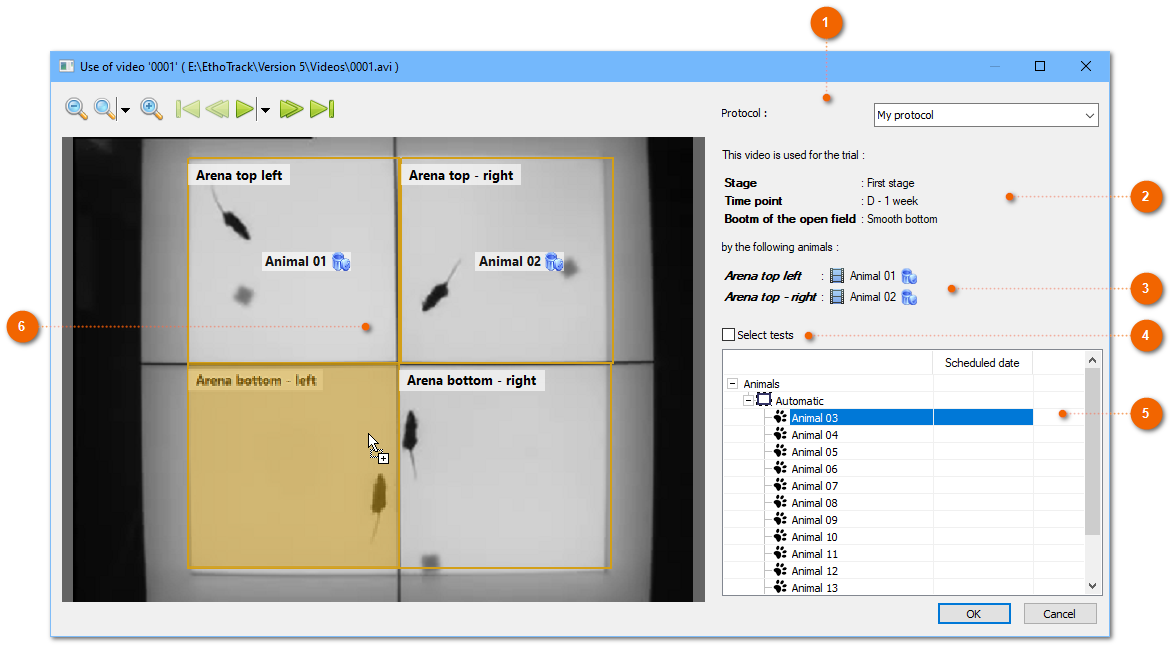

Selection by animal :
To avoid the risk of error, it is advisable to organize your experimental plan to respect the following rules:
•an animal must perform a trial no more than once.
•if the protocol includes several arenas, the tests recorded on the same video must correspond to the same trial.
If these 2 conditions are met, it is possible to link the tests to a video by selecting a trial, then placing the animals participating in this trial in their respective arena.
.png)
|
.png)
|
Protocol :
|
|
Choice of protocol. Only protocols compatible with the video size are offered.
|
|
.png)
|
Stage / Trials :
|
|
The description of the selected trial (when at least one animal is assigned to the video).
If no animal is assigned to the video, this area allows you to select a stage and a trial :
.png)
|
|
.png)
|
Use :
|
|
The list of animals linked to the video for the selected trial. Click .png) to delete a link.
|
|
.png)
|
Select tests :
|
|
Allows you to choose the selection mode (Test if the box is checked, animal otherwise).
|
|
.png)
|
List of animals :
|
|
The list of animals for which the selected trial test is "Pending" grouped by arena by default.
|
|
.png)
|
Video :
|
|
The video superimposes the arenas and the animals in their respective arenas.
Click to delete a link.
|
To assign an animal to the video, simply click on the animal in the list, move the cursor to the video while holding down the mouse button, then release the mouse button when the cursor is over. is located above the chosen arena.
It is also possible to "double click" on an animal to automatically assign it to the next available arena.
.png) If the protocol includes several arenas, it is advisable to always place the animals in the same arena.

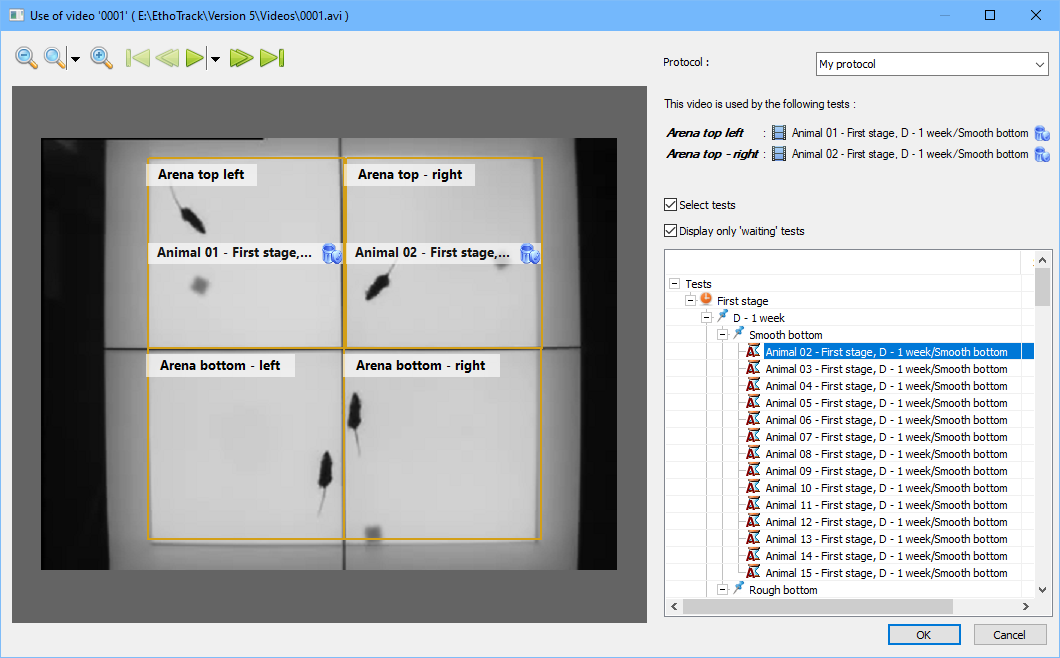

Selection by test :
If an animal must perform the same trial several times, or if the video contains test recordings corresponding to different trials, simply check the box .png) to directly link the tests to the video.
.png)
To open this dialog box :
This dialog box is accessible by clicking on the button .png) in the video editing dialog box.
|
