This view presents the main information of the current experiment.
Ribbon commands:
.png)
•Experiment :
oNew experiment : Create a new experiment.
oOpen : Open an existing experiment.
oSave : Save changes to the current experiment.
oClose : Close the current experiment.
oRename : Rename the current experiment.
oImport : Import elements (protocols or user fields) from another Ethotrack experiment.
oClean up : Reduces the size of the experiment file by compacting the database.
oCheck : Verifies the consistency of the experiment and allows certain errors to be detected (choice of arena, detection rate, etc.).
oBatch analysis : Open the " Batch analysis " dialog box to start the analysis of several tests.
oSettings : Open the " Experiment Settings " dialog
oReference images : Open the dialog box for managing reference images.
oUser Fields : Open the dialog for managing user fields .
•Items :
oNew protocol : Add a new protocol.
oNew animal : Add an animal.
oNew test : Add a test.
oSeveral tests : Add multiple tests with the test creation wizard .
•Workspace :
oShow : Show or hide the workspace .
o.png) : Allows you to display or hide the tests in the workspace according to their status (Pending, saved, analyzed, excluded).
oExpand all : fully expand the tree structure of the "Animals / Tests" node of the workspace.
oCollapse all : collapse the tree structure of the "Animals / Tests" node of the workspace.
oCollapse Tests : Collapse the workspace tree to the parent nodes of the tests.
oGroup / Sort : open the dialog box for configuring the tree structure of the "Animals" or "Tests" node of the workspace.

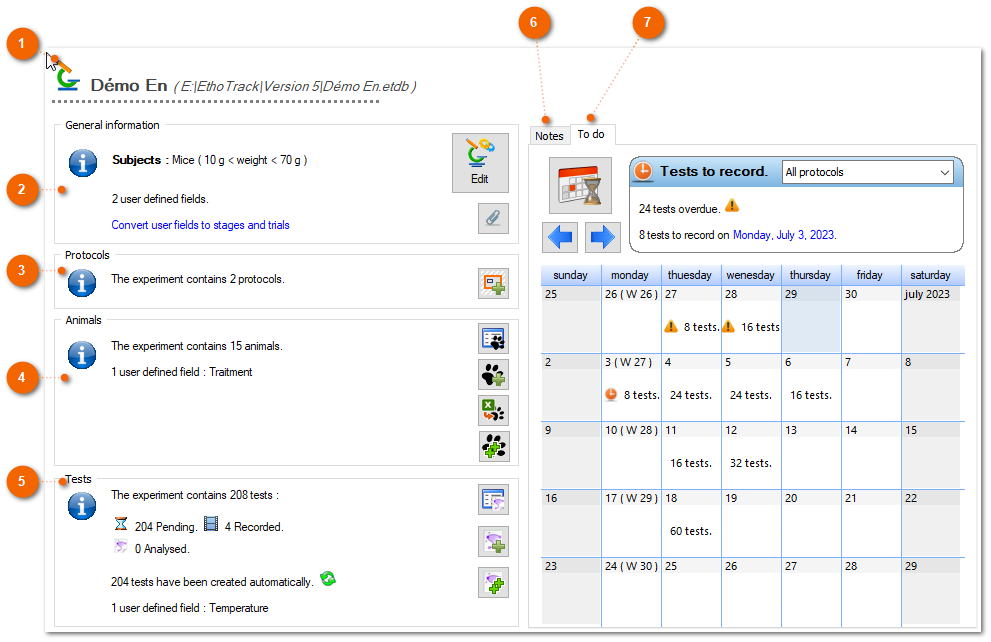

Main part :
.png)
|
.png)
|
Title :
|
|
The name of the experiment and the location of the experiment file.
|
|
.png)
|
General information :
|
|
The summary of the parameters of the experiment.
Click the button to open the " .png) Experiment Settings " dialog box
Click the button .png) to open the dialog for editing user fields .
|
|
.png)
|
Protocols :
|
|
The number of protocols.
Click the button .png) to add a new protocol.
|
|
.png)
|
Animals :
|
|
The number of animals as well as the details of the "animal user fields".
Click on the button .png) to display the list of animals.
Click the button .png) to add an animal.
|
|
.png)
|
Tests :
|
|
The number of tests, as well as the distribution of tests according to their status. Details of "test user fields".
Click on the button .png) to display the list of tests.
Click the button .png) to add a test.
Click the button .png) to add multiple tests with the test creation wizard .
|
|
.png)
|
Notes :
|
|
This area allows you to enter notes or comments on the experiment.
|
|
.png)
|
To do :
|
|
The list of pending tests presents the list of scheduled tests in chronological form. The tests are grouped into 3 categories:
Overdue tests.
Tests scheduled today.
The tests planned in the next few days.
You can click directly on the title of a test to select it as the current test and open the "Current test" mode.
|
|
