This tab allows you to precisely select the tests to be included in a report by defining a more or less complex logical condition. This logical condition can incorporate the following parameters:
The animal's name.
Some results calculated during the analysis (total distance covered, average speed, etc.).
User fields of the "choice" or "numeric" type.

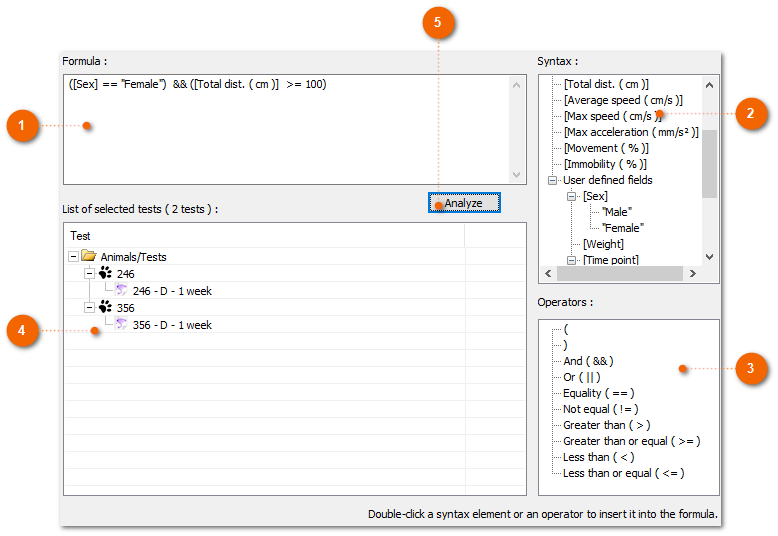

In the example below: only the female animals having traveled more than 100 cm during the test will be selected (the unit used is that defined in the options of the experiment).
.png)
|
.png)
|
Formula :
|
|
Input box for the logical condition.
|
|
.png)
|
Syntax :
|
|
List of keywords that can be used in the formula defining the logical condition. Double-click an item in this list to insert it into the formula at the cursor position.
|
|
.png)
|
Operators :
|
|
List of operators that can be used in the formula defining the logical condition. Double-click an item in this list to insert it into the formula at the cursor position.
|
|
.png)
|
List of selected tests :
|
|
List of tests for which the logical condition defined by the formula is true.
|
|
.png)
|
Analyze :
|
|
Button used to check the syntax of the formula and refresh the list of selected tests.
|
.png) For criteria based on a calculated numeric value, the comparison is made on the actual calculated value and not on the rounded value as displayed in the "list of tests" or in the "current test" view (for example: if the calculated distance traveled is 99.997 cm, the value rounded to 2 decimal places displayed is 100.00 cm and the condition "distance traveled greater than or equal to 100 will be considered false).
|
