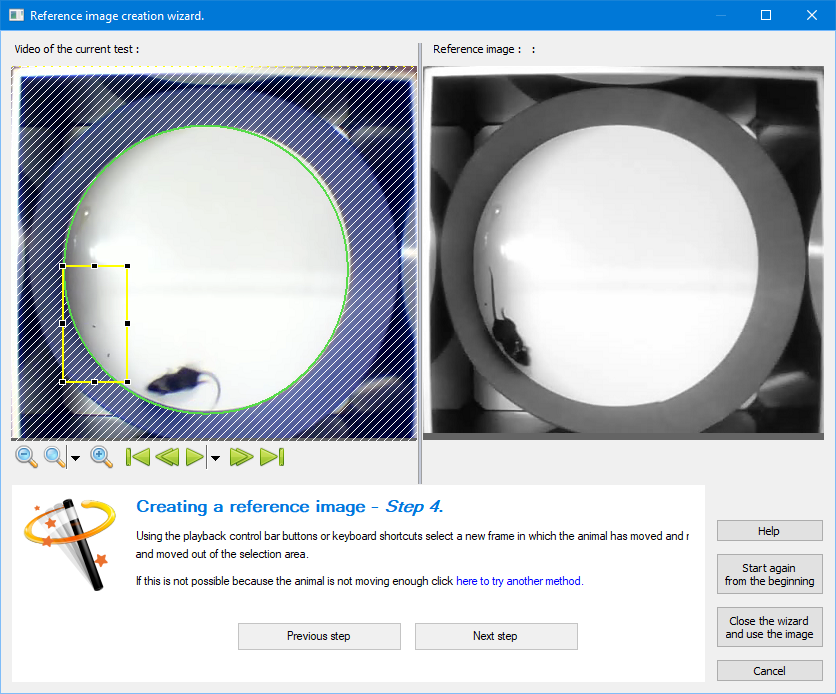

Reference Image Creation Wizard

The wizard helps you create a reference image using a series of simple steps.

The dialog box is separated into 3 parts:

Top left: the video of the current test with the control bar that allows you to play the video or zoom.

Top right: the reference image under construction.

Bottom: the operations to be performed on the different steps.

At any time, if the reference image looks correct, you can click the "Close wizard and use image" button to return to the detection settings panel.

To open the wizard:

In the "automatic mode" tab of the detection settings side panel: open the Reference Image drop-down list and select "Create a reference image with the wizard...".

In the "image subtraction mode" tab, click on the button .
