Recording / Analysis

This tab allows you to configure the recording of videos if this is done by Ethotrack with a webcam connected to the computer:

It also allows to program the sequencer which triggers the start and end of the analysis.

The sequencer is made up of events and actions connected by links. These links are represented by arrows, the direction of which indicates the chronological order of the progress of the various stages.

The events :

An event blocks the flow of the program until the condition defined in the event is true. When the condition is true, the sequencer can proceed to the next steps. The following steps which are actions are carried out and the following steps which are events are in turn tested until their condition is verified.

The event conditions are:

Immediately.

After a certain period.

When the animal is in motion for a certain time. Note: the animal is considered to be in motion if it remains motionless for less than the duration of immobility defined in the 'General' tab of the protocol.

When the animal is motionless for some time.

When the animal enters a zone for a certain period of time.

When the animal enters a zone one or more times. Note: The presence of the animal in the zone during the first evaluation of the event is counted as an entry if the option "Consider the presence of the animal in the zone during the first evaluation as an entry" is selected.

When the animal leaves a zone for a certain period of time.

When the animal leaves a zone one or more times. Note: The presence of the animal outside the zone during the first evaluation of the event is counted as an exit if the option "Consider the presence of the animal outside the zone during the first evaluation as an exit" is selected.

The actions :

actions are:

Start analysis.

Stop analysis.

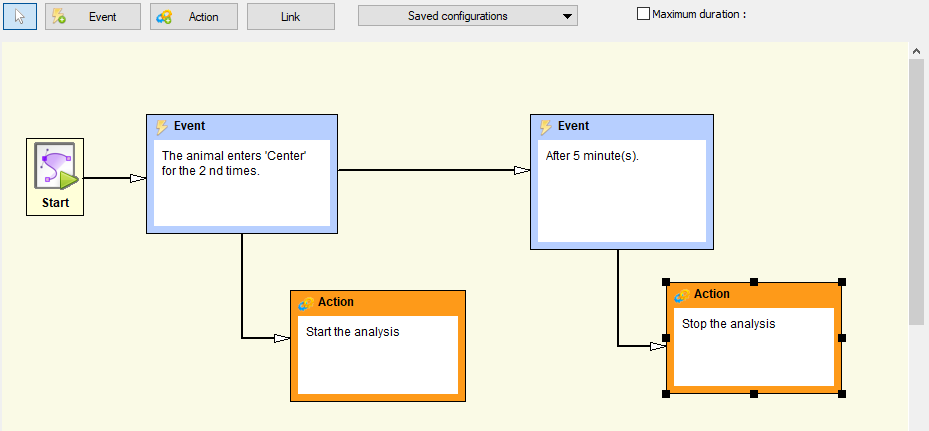

In the example above the recording of the animal's position starts when it enters the zone 'Center' for the second time, and continues for a duration of 5 minutes.

Maximum duration:

It is possible to set a maximum duration from the beginning of the video. When this duration is reached, the analysis is stopped, whether the stop condition defined by the sequencer is reached or not.

Pre-saved configurations:

Select an item from the list to recall a pre-stored standard configuration.

Immediate start : The analysis starts immediately at the beginning of the video and continues until the end of the video.

Start after delay : The analysis starts after a certain delay and continues until the end of the video.

Start after delay, end after delay : The scan starts after a certain delay and ends automatically after a certain time.

To add an event or action:

1.Click the button or the button to select the item to add.

2.Click in the sequencer edit area.

3.While holding down the left mouse button, move the cursor to size the element.

4.Double click the element you just added or use the "Properties" contextual menu to modify the properties of the element.

To add a link between 2 elements:

1.Click the button .

2.Click on the edge of the starting element when the cursor takes on the shape of a chain .

3.Move the mouse cursor. Click in a free part of the editing area to position an angle on the link and change direction.

4.Click the edge of the final element.

To select an element (event, action or link):

1.Click the select button .

2.Click on the item to select.

To select several elements (event, action or link):

1.Click the select button .

2.Click in a free part of the editing area.

3.While holding down the left mouse button, move the cursor to encompass the items to be selected.

4.You can also hold down the "Ctrl" key while clicking on an element to add it to the selection.

To delete one or more items:

1.Select one or more items.

2.Press the "Delete" key on your keyboard or use the contextual menu: "Cut", or use the keyboard shortcut "CTRL"+X

Keyboard shortcuts :

You can use the arrow keys to move selected items.

You can use the arrow keys while holding the "Shift" key ( Shift ) pressed to resize the selected elements.

"Ctrl" + "Return": open the properties window of the selected element.

"Ctrl" + A: select all elements.

"Ctrl" + X: cut the selected elements.

"Ctrl" + V: Paste selected items.

"Ctrl" + C: copy the selected elements.

"Ctrl" + Z: undo the last action (maximum: 10 actions).

"Ctrl" + Y: redo the last undone action.

"Next page": move the selected element back.

"Previous page": advance the selected element.

"Ctrl" + "Next page": put in the background.

"Ctrl" + "Previous page": bring to the foreground.
